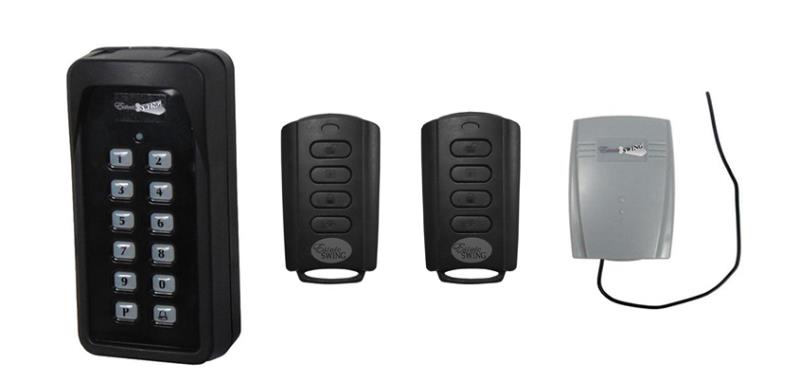

Estate Swing Remote Access Package


Price: $129.88


Qty:





FREE SHIPPING!
Continental USA only
   Product Details
  • Compatibilities
  • Uses
  • Features
  • Words from Senior Application Engineer
  • Customer Photos
  • Options
  • Product Media


  •    Compatibilites Top of Page

    433 Mhz Wireless Keypad:
    The Gate Crafters Wireless Stainless Steel Keypad is compatible with:

    Estate Swing: E-S 300*, E-S 302*, E-S 500*, E-S 502*, E-S 1100*, E-S 1102*, E-SC 1102*, E-S 1600*, E-S 1602*, E-SC 1600*, E-SC 1602*, E-SU 2200*, E-SU 2202*, E-S 450, E-SL 1200*, E-SL 1800*, E-SL 2000AC* (**when equipped with 433 mhz receiver shown below)
    Apollo: 1500*, 1600*, 1550*, 1650*, 3500ETL*, 3600ETL*, 7000UL*, 7500ETL*, BA-12* (**when equipped with 433 mhz receiver shown below)
    Other: Estate Swing 433 MHz Receiver wired into any other device.

    Note: If you use the transmitter seen at the top of related items to the left then this keypad WILL be compatible. If you use any other remote than the one to the left - you must verify you have the above receiver as part of your system.

    433 Mhz Transmitter:
    The Estate Swing 433 Mhz remote is compatible with:

    New Apollo (only when purchased through gatecrafters.com) and Estate Swing gate openers. Existing Estate Swing openers from 2012 or newer. Any devices paired with the 433ESREC receiver.

    433 Mhz Receiver:
    The Estate Swing 433 MHz 2 Channel receiver (433ESREC) is compatible wired with: All gate openers for 24 volt gate openers a 12 volt transformer will be needed (not included)

       Uses Top of Page

    433 Mhz Wireless Keypad:
    The Estate Swing wireless four channel digital keypad is a must for every gate opener. It can hold four access codes - each of which sends a uniquely coded signal. Each code can independently control its device or all four can control the same gate. Additionally, a popular feature is the single digit secondary transmission. After an entry code is entered, for approximately 20 seconds, you can press any numeric key on the keypad to send a second signal. This is very useful if an object gets in the way and you need to stop or reverse the gate. There are multiple ways you can program this four channel digital keypad.

    Some possibilities are as follows:

  • Each Estate Swing receiver comes with two channels. The first channel is used by the gate opener to open      and close the gate opener; the second channel is left free to wire to anything you may need. If you purchase      a timer you could wire the second channel to the timer and have that channel only active for business hours.      You can program one access code for triggering channel 1 and opening the gate all the time and program      the second code to channel 2 to only allow access via that code during business hours.

  • If your garage is within 200 feet of your gate you can add an Estate Swing receiver to the garage door. Then      you could program an access code for the gate and another for the garage door.

  • If you have a pedestrian gate with an electric pedestrian gate lock you could add an Estate Swing receiver      to the lock kit. Then you would be able to release the lock through the same keypad as the gate opener.

  • Or you can simply program multiple codes to the receiver that comes with your Estate Swing. Keep one      code for the family that you know you will never have to change. And then use the other codes for deliveries      or lawn services. If you have to change one of them your family members will not have to memorize a new      access code.

    This residential keypad is made of a UV protected black ABS plastic. The buttons are back-lit white upon pressing. The led will remain lit during the use of the keypad and then turn off to conserve battery power. This keypad is designed to be easily mounted and blend aesthetically to a keypad stand or be surface mounted to a column, fence or garage door frame. It is completely weatherproof and requires no hood or cover from the elements.

    433 Mhz Transmitter:
    The Estate Swing gate opener four button remote control is considered one of the premium remotes, compared to currently available gate openers. Featuring a range that can exceed 300 feet, the Estate Swing four button remote adds a new level of reliability to your gate opener system. This remote can be used from your car, motorcycle, pocket, purse or even from your house if it is within range. (NOTE: Always make sure you can see the gate and are aware of anyone near it when activating the gate opener for safety purposes)

    The compatible receiver has the capacity to learn up to 400 codes. Each button on this remote sends a unique code. You can program each button to a different receiver or you can program all four buttons to the same receiver. Each button programmed to the receiver will count as one code used out of the 400 available.


    433 Mhz Receiver:
    The Estate Swing 433 MHz 2 Channel receiver (433ESREC) can not only control your gate opener, but it also has the ability to control a separate device at the same time, such as your garage door. The two channels on the control board can be programmed to 400 remotes and buttons on transmitters. Another option for using the two relays on the receiver is controlling two separate terminals on a single gate opener. Many times gate openers will have a terminal for an automated open and close, and another terminal for partial opening or open only during re-closing without stopping. A second button on the remote could be used to control this second function.


  •    Features Top of Page

    433 Mhz Wireless Keypad:

    • 4 Channel: Control up to four devices with a single keypad
    • Long range: 200+ foot wireless signal
    • Night Use: Keypad LED illuminates when numbers are pressed
    • Battery Powered: 9 Volt battery included, lasts approximately 4 years
    • Secure (Commercial Version): Locked to the mounting plate, requires specialized provided tool for removal

    433 Mhz Transmitter:

    • Visor Clip: The visor clip is designed to slide onto most sun visors of most model cars or trucks.
    • Key Ring Holder: Remove the clip and add the remote to your key chain for walks or motorcyclists.
    • Strong Range: The remote has a range of 300 feet. with a powerful 433 MHz frequency this remote will be very reliable for entry and exit. so line of sight is not necessary but helps.
    • Learning code: With the press of a button the new remote is learned into the receiver. No need to match dip switches with old remotes.
    • Size: At 1/2" D x 1 1/4" W x 2" H this remote is about the same size as many automobile key chain remotes.

    433 Mhz Receiver:
    • Easy Wiring: There are four to six wires that you need to connect depending on if you are using one or two channels. Two are for power, which can be AC or DC 12-24V. If you cannot find a power source (most gate openers have a battery you can run it off of), then you can hook it up to a transformer. (Search your junk drawers, many old transformers from other electronics may fall within the generous range allowed by our receiver). The other two wires close a circuit. On a garage door, simply find the two terminals that the wall mount button uses.

    • Strong Range: This is one of the best features of this receiver. The range is rated at 300 feet but many times it can exceed this.

    • Learn Button Programming: Simply press the learn button on the receiver. A light comes on. Then press the button on the remote you wish to use and the light blinks and turns off. Done! Repeat with other remotes or buttons. This receiver can learn up to 400 remotes

    • Versatility: Because of the simplicity of the receiver, it can be used to just about any purpose. On Estate Swings there is a second open command terminal for partial openings, you can use this receiver to allow a dual button remote to open your gate fully or partially. On Apollos and GTOs that are open only terminals, you can use this receiver to create safer automation for multiple remote control users by only allowing them to open the gate and letting auto-close close the gate - great for condos and other public entrances so they cannot accidentally reverse the gate on another car. For any accessories that are not wireless you can use the 433UNIADP 433 MHz adapter paired up with this receiver to make it a wireless device. In addition to all that, it has both a normally open and normally closed connection, allowing it to either open a circuit or close a circuit wirelessly - we have had hundreds of customers that came up with many other great uses for this device.

       Words from Senior Application, Anthony Gaeto Top of Page

    Estate Swing 433 MHz Wireless Residential Keypad
    Estate Swing 433 MHz Wireless Commercial Keypad
    “The Estate Swing 433MHz 4-Channel keypad comes with your choice of housing. This keypad has the capability to be learned wireless with an Estate Swing 433MHz receiver. The receiver has two separate channels built in. The first channel controls the opening and closing of your gate opener, and the second channel can be in conjunction with a timer to give codes that are only able to operate the gate opener during business hours or other time parameters. The residential housing features an ABS black plastic body that is UV protected, which will keep this keypad looking great for years to come. The keys on this keypad are lit by upper LED and will come on once a key is pressed. The commercial grade housing is made of all metal and features a stainless steel faceplate as well as stainless steel buttons.

    This unit features a built-in LED bulb that will illuminate the keys during use. One nice feature of the Estate Swing keypads is the capability of being able to send a secondary digit transmission to the receiver. After you enter your entry code, you will be allowed to press a single numerical key to either stop or reverse your gate. This window lasts for 20 seconds for a secondary transmission. This is helpful in the case that someone enters the path of the driveway gate. If you need any help with the programming of your Estate Swing keypad, please watch this video or give us a call, send us an email, or use our live chat. Gate Crafters has experts standing by to help you out with any question you may have. We are available 7 days a week from 9 am to 9 pm, eastern time. We look forward to hearing from you”

       Customer Photos Top of Page

    433 Keypad on 3 Rail Gate
       Options Top of Page

    433 Mhz Wireless Keypad:

    Add a keypad stand: Click here

    Add a timer: Click here

    433 Mhz Transmitter:

  • Single Button: Operates one gate opener or garage door opener (when matching with compatible receiver).
  • Note: If your gate is out of range from your garage door or multiple gate opener then a single button can be used to operate both.


    433 Mhz Receiver:

    • 433ESRec: Standard receiver - ready to wire into any system.
    • 433ClipESRec12: Comes with plug-in clip for ES 1000D and H gate openers
    • 433ClipESRec12C: Comes with plug-in clip for ES 300, ES 302, ES 500, ES 502, ES 400, ES 402, ES 1100, ES 1102, ESC 1102, ESL1200 gate openers
    • 433ClipESRec24: Comes with plug-in clip for ES 1600, ES 1602, ESC 1600, ESC 1602, ESU 2200, ESU 2202, ESL 1800, ESL2000 gate openers
       Product Media Top of Page
    Receiver Programing

    Keypad Programming

    Wireless Keypad Programming


    Manual: Keypad
    Manual: Transmitter to Receiver
