Chip Wade | Estate Swing

Click on the image to enlarge!

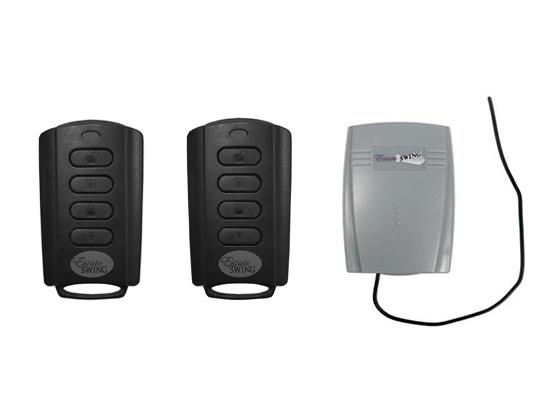

Estate Swing 433 Mhz Transmitter Plus Receiver Package


Price: $74.93


Qty:





FREE SHIPPING!
Continental USA only
   Product Details
  • Compatibilities
  • Uses
  • Features
  • Options
  • Product Media


  •    Compatibilites Top of Page
    The FAAC 418 Mhz Transmitter has been discontinued. We recommend converting to the Estate Swing 433 Mhz Transmitter Plus Receiver Package for full compatibility.

    433 Mhz Transmitter:
    The Estate Swing 433 Mhz remote is compatible with:

    New Apollo (only when purchased through gatecrafters.com) and Estate Swing gate openers. Existing Estate Swing openers from 2012 or newer. Any devices paired with the 433ESREC receiver.

    433 Mhz Receiver:
    The Estate Swing 433 MHz 2 Channel receiver (433ESREC) is compatible wired with: All gate openers for 24 volt gate openers a 12 volt transformer will be needed (not included)

       Uses Top of Page

    433 Mhz Transmitter:
    The Estate Swing gate opener 4 button remote control is considered one of the premium remotes in comparison with current available gate openers. Featuring a range that can exceed 300 feet, the Estate Swing 4 button remote adds a new level of reliability to your gate opener system. This remote can be used from your car, motorcycle, pocket, purse or even from your house if it is within range (NOTE: Always make sure you can see the gate and are aware of anyone near it when activating the gate opener for safety purposes).

    The compatible receiver has the capacity to learn up to 400 codes. Each button on this remote sends a unique code. You can learn each button to a different receiver or you can learn all four buttons to the same receiver. Each button learned to the receiver will count as one code used out of the 400 available


    433 Mhz Receiver:
    The Estate Swing 433 MHz 2 Channel receiver (433ESREC) can not only control your gate opener, but it also has the ability to control a separate device at the same time, such as your garage door. The two channels on the control board can be programmed to 400 remotes and buttons on transmitters. Another option for using the two relays on the receiver is controlling two separate terminals on a single gate opener. Many times gate openers will have a terminal for an automated open and close, and another terminal for partial opening or open only during re-closing without stopping. A second button on the remote could be used to control this second function.


       Features Top of Page

    433 Mhz Transmitter:

    • Visor Clip: The visor clip is designed to slide onto most sun visors of most model cars or trucks.
    • Key Ring Holder: Remove the clip and add the remote to your key chain for walks or motorcyclists.
    • Strong Range: The remote has a range of 300 feet. with a powerful 433 MHz frequency this remote will be very reliable for entry and exit. so line of sight is not necessary but helps.
    • Learning code: With the press of a button the new remote is learned into the receiver. No need to match dip switches with old remotes.
    • Size: At 1/2" D x 1 1/4" W x 2" H this remote is about the same size as many automobile key chain remotes.

    433 Mhz Receiver:
    • Easy Wiring: There are 4 or 6 wires that you need to connect depending on if you are using 1 or 2 channels. Two are for power, which can be AC or DC 12-24V. If you cannot find a power source (most gate openers have a battery you can run it off of) then you can hook it up to a transformer. (Search your junk drawers, many old transformers from other electronics may fall within the generous range allowed by our receiver). The other two wires close a circuit. On a garage door simply find the two terminals that the wall mount button uses.
    • Strong Range: This is one of the best features of this receiver. The range is rated at 300 feet but many times it can exceed this.
    • Learn Button Programming: Simply press the learn button on the receiver. A light comes on. Then press the button on the remote you wish to use and the light blinks and turns off. Done! Repeat with other remotes or buttons. This receiver can learn up to 400 remotes
    • Versatility: Because of the simplicity of the receiver, it can be used to just about any purpose. On Estate Swings there is a second open command terminal for partial openings, you can use this receiver to allow a dual button remote to open your gate fully or partially. On Apollos and GTOs, there are open only terminals, you can use this receiver to create safer automation for multiple remote control users by only allowing them to open the gate and letting auto-close close the gate - great for condos and other public entrances so they cannot accidentally reverse the gate on another car. For any accessories that are not wireless you can use the 433UNIADP 433 MHz adapter paired up with this receiver to make it a wireless device. In addition to all that, it has both a normally open and normally closed connection, allowing it to either open a circuit or close a circuit wirelessly - we have had hundreds of customers that came up with many other great uses for this device.

       Options Top of Page

    433 Mhz Transmitter:

  • Single Button: Operates one gate opener or garage door opener (when matching with compatible      receiver).
  • Note: If your gate is out of range from your garage door or multiple gate opener then a single button can be used to operate both.


    433 Mhz Receiver:

  • 433ESRec: Standard receiver - ready to wire into any system.
  • 433ClipESRec12: Comes with plug-in clip for ES 1000D and H gate openers
  • 433ClipESRec12C: Comes with plug-in clip for ES 300, ES 302, ES 500, ES 502, ES 400, ES 402, ES      1100, ES 1102, ESC 1102, ESL1200 gate openers
  • 433ClipESRec24: Comes with plug-in clip for ES 1600, ES 1602, ESC 1600, ESC 1602, ESU 2200, ESU      2202, ESL 1800, ESL2000 gate openers
  •    Product Media Top of Page

    Receiver Programing


    Manual: Transmitter to Receiver
    QB ID: ES433KIT
