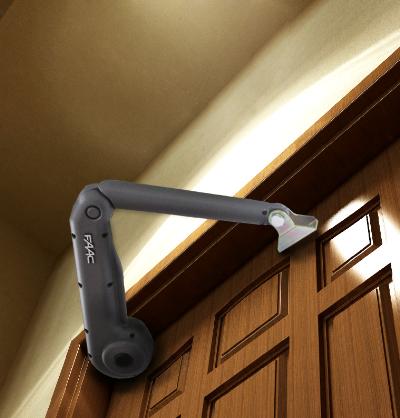

Estate Swing Light Duty Carriage Door Opener Kit (E-SC 1102 - CD)
|
Price: $859.00
Qty:
|
|
|
|
|
The Estate Swing Light Duty Carriage Door Opener Kit is a revolutionary opener designed for homes with carriage doors. As the first
unit of its kind, The Estate Swing Light Duty Carriage Door Opener Kit offers easy-to-install functionality. It is specifically designed for
use in a residential location, enhancing usability of one's carriage door while maintaining the aesthetically pleasing exterior.
- Weight and length: Up to 6' in length or 200 lbs per leaf
- Purpose: automates carriage gargage doors
- Compatible with: keypads, magnetic and solenoid locks, safety sensors, intercoms, and much more!
- Solar Compatible: Yes (purchased separately).
- Power: 12V DC Battery (included)
|
|
The Estate Swing Light Duty Carriage Door Opener Kit was designed for easy installation for the average handyman. Each kit comes
standard with everything needed for installation, including mounting brackets (hardware to affix brackets to wall is not included). For
streamlined installation, we offer 9am-9pm EST Tech Support. If those hours do not fit a customer's schedule, the customer need only
send in an e-mail detailing expected installation time, and CarriageDoorOpeners.com will respond with a number for the customer to
reach a representative during the scheduled installation. How many other companies will alter their business hours for a customer?
Additionally, this kit's low voltage system further enhances the ease of installation. Simply run 16-gauge low voltage to a household
outlet within 1000' of the operator. Finally, included with the kit is the unique user directed instruction manual, designed and updated by
CarriageDoorOpeners.com, for continuous improvement of installation ease, maintenance, and troubleshooting updates.
All Estate Swing Carriage Door Opener Kits are built to the highest standards world wide. To begin with, the manufacturer meets or
exceeds ISO 9000 regulations, which require testing on 100% of all products being produced in a single factory, and all the parts of
Estate Swing systems are made in one factory. Likewise, Estate Swing products are certified for and exceed UL 325 standards for
anti-crushing safety. This is a major consideration as garage and carriage door openers are notoriously involved in causing accidental
injury or property damage. But with Estate Swing's superior commitment to safety, the consumer can be assured of the highest level of
safety. The diligent observation of safety standards further ensures that this model not only meets safety requirements, but also offers a
high quality product.
The Estate Swing Light Duty Carriage Door Opener Kit is a fully weatherproof system that consists of a non-reversing
electro-mechanical articulating operator, powered by a 12V DC battery, combined with a control board to move the arm and trickle
charge the backup battery. The non-reversing system guarantees the carriage door will automatically lock when the motor is not
operating. For added security, we do recommend an external automatic lock. For added safety, CarriageDoorOpeners.com and
FAAC both recommend having the complete safety package installed. Please note: This carriage door opener must be used in garages with fire exits. While the operator has a manual release, it’s not rated for emergency usage.
|
- Opening/Closing Soft Stop - Opening/Closing Soft Stop is a feature in which the control board, during the easy set up
process, learns where the opening and closing points are for the swing of the carriage door. Then during normal operation, the carriage
door operator automatically slows the motion of the door to smoothly meet with the doors destination point, minimizing wear and tear
on the door.
- Advanced Gear System - The advanced gear system is essential to the durability and power of the carriage door opener.
The design of this motor enhances reliability and control, and cuts down on overall wear and tear on the motor. The planetary gear
system uses the most number of gears in a gear system, and the more gears, the higher the amplification of the power of the motor.
- All Weather Compatible - This arm can handle significant variations in temperature from the Minnesota cold to the Florida
heat and everything in between.
- One Touch EZ Programming - The Estate Swing Light Duty Carriage Door Opener Kit can be programmed by simply
pressing one button. The control board is built to be inherently intelligent and learns the open and closing limits automatically, so there is
no need for time-consuming guesstimates and manual adjustments.
- Highest Level of Safety - In addition to meeting or exceeding many safety standards, this kit's safety devices function on a
normally closed circuit. This means that if a safety device does not activate for any reason, the opener will not operate, keeping loved
ones and assets safe. Most other openers function on a normally open circuit, which means the consumer does not know the safety
device is not working properly until it is too late. Another great feature is the lack of pinch points; the articulating arm has been
specifically designed to extend and retract without trapping fingers or anything else in the arm.
- Quick, Safe and Secure Manual Release - Every unit comes with a manual release key. In the rare case power has failed
and the back up battery is not charged, the manual release key can be used to safely open the carriage door without damaging the
opener arm or disconnecting anything from the carriage door.
- Preset Function Logics - At the touch of a button, it is possible to change multiple settings on the Carriage Door Opener
to be focused towards safety, convenience, etc.
- Adjustable Performance Features - Consumers can adjust the performance of the Carriage Door Opener to fit their
tastes, lifestyle, and needs. Pause Times, Opening/Closing Delays, Static Force and much more can all be adjusted.
- 12 Volt Output Terminals - Convenient for accessories requiring power, i.e. locks, sensors, etc.
- Control Board, Easy Read Diagnostics - FAAC has included an LED light diagnostic on the control board for easy
diagnostics of problems or missing connections. This allows efficient repair and swift continuation of normal carriage door operation.
- Quick Plug Radio Receiver - The easiest receiver to use on the market. There are no wires to run, simply set your dip
switch combination and plug it into the board.
|
- 12V Battery
- Two operator arms with power cable
- Control Board
- Manual Release Key
|
- Receiver
- Transmitter
- 18VAC Transformer
- Mounting Hardware
- Pair of Safety Infrared Sensors!
|
|
Free 24/7/365 Installation Support
Limited 5 year
mechanical warrantee
Free 7 day/week Technical Support
Largest Number of Certified Techs in America
Free engineering assistance to find the right door opener for your doors
Free systems design assistance to match the right accessories to fit your needs
Extremely competitive pricing
Free shipping on all accessories
Constant tracking of your order !
|
|
The following tools and supplies are suggested in the manufacturer's manual for optimal installation. They are not provided by
CarriageDoorOpeners, however, most tools are available at local hardware stores for purchase or rental.
- Power Drill
- Crescent Wrench
- 5/16" Drill Bit
- Drill bit appropriate to the anchoring hardware used
- Flat Head Mini Screwdriver
- Phillips Head Screwdriver
- Tape Measure
- Level
- Wire Strippers
- C-Clamps
- Carpenters Clamp
Depending on the type of door, power supply and contributing environmental factors additional tools or supplies may be needed.
Please review the product manual associated with this carriage door opener model for
further details.
|
 Estate Swing Light Duty Carriage Door Opener_Wittenburg-T.JPG" border="0"
alt="ES 500">
Write a testimonial for this product or send a customer installed picture.
Please send them to: Sales@CarriageDoorOpeners.com
|
Manual: EstateSwingLightCarraige
QB ID: E-SC 1102 - CD
|
|
|
|
|
|
|
|
|
|
