Estate Swing Medium Duty Carriage Door Opener Kit
Click on the image to enlarge!

Estate Swing Medium Duty Carriage Door Opener Kit


Price: $1,099.00

Qty:




   Product Details
  • Overview
  • DIY Installation
  • Detailed Description
  • Features
  • Customer Installations
  • Included Items
  • Tools & Supplies for Installation
  • Product Media


  •    Medium Duty Opener Overview Top of Page

    The Estate Swing Medium Duty Carriage Door Opener Kit is a revolutionary opener designed for homes with carriage doors. As the first unit of its kind, The Estate Swing Medium Duty Carriage Door Opener Kit offers easy-to-install functionality. It is specifically designed for use in a residential location, enhancing usability of one's carriage door while maintaining the aesthetically pleasing exterior.

    • Weight: 500 lbs per leaf
    • Opening Arch Capabilities: Up to 90°
    • Purpose: Automate Carriage Doors
    • Compatible with: keypads, magnetic and solenoid locks, safety sensors, intercoms, and much more!
    • Power: 24V Motor, back up battery compatible (purchase separately).

       DIY Installation Top of Page

    DIYInstall

    The Estate Swing DIY Medium Duty Carriage Door Opener Kit is truly a DIY installation. The operator motor and pivot arm can be installed with household tools and requires no specialized tools. The low voltage wiring does not require professional installation. CarriageDoorOpeners.com encourages our customers to install their openers as it will save them $1000s of dollars overtime because they will have knowledge on how the opener was installed and it will make it easier for them to carry out routine maintenance. We have technical and installation support 7 days a week from 9 am to 9 pm, EST to help with any questions you may have during your installation.


       Detailed Description Top of Page

    The Estate Swing Medium Duty Carriage Door Opener Kit is a revolutionary opener designed for homes with carriage doors. As first of its kind unit, The Estate Swing Medium Duty Carriage Door Opener Kit offers easy-to-install functionality. It is specifically designed for use in a residential location, enhancing usability of ones carriage door while maintaining the aesthetically pleasing exterior.

    The Estate Swing Medium Duty Carriage Door Opener Kit was designed for easy installation for the average handyman. Each kit comes standard with everything needed for installation, including mounting brackets (hardware to affix brackets to wall is not included). For the streamlined installation, we offer 9am-9pm EST Tech Support. If those hours do not fit a customer's schedule, the customer need only send in an e-mail detailing expected installation time, and CarriageDoorOpeners.com will respond with a number for the customer to reach a representative during the scheduled installation. How many other companies will alter their business hours for a customer? Additionally, this kit's low voltage system further enhances the ease of installation. Just run a low voltage wire to a household outlet within 200' of the operator. Finally, included within the kit is the unique user directed instruction manual, designed and updated by CarriageDoorOpeners.com, for continuous improvement of installation ease, maintenance, and troubleshooting updates.

    All Estate Swing Carriage Door Opener Kits are built to the highest standards world wide. To begin with, the manufacturer meets or exceeds ISO 9000 regulations, which require testing on 100% of all products being produced in a single factory, and all the parts of Estate Swing systems are made in one factory. Likewise, Estate Swing products are certified for and exceed UL 325 standards for anti-crushing safety. This is a major consideration as garage and carriage door openers are notoriously involved in causing accidental injury or property damage. But with Estate Swing's superior commitment to safety, the consumer can be assured of the highest level of safety. The diligent observation of safety standards further ensures that this model not only meets safety requirements, but also offers a high quality product.

    Please note: This carriage door opener must be used in garages with fire exits. While the operator has a manual release, it’s not rated for emergency usage.


       Features Top of Page

    The Estate Swing Medium Duty Carriage Door Opener Kit includes marketing leading features that are innovation in design. These features include:

    • Time Tested Design - This design has been used for over 30 years and is still in use on thousands of homes and businesses around the globe. It is identical to the design of the first electro-mechanical carriage door opener. This is the design that proved to consumers that electro-mechanical openers could be more reliable, efficient, and cost effective than hydraulic designs
    • Advanced Gear System - The advanced gear system is essential to the durability and power of the carriage door opener. The design of this motor, a worm gear system, enhances reliability and control, and cuts down on overall wear and tear on the motor.
    • All Weather Compatible - This arm can handle significant variations in temperature from the Minnesota cold to the Florida heat and everything in between.
    • One Touch EZ Programming - The Estate Swing Medium Duty Carriage Door Opener Kit can be programmed by simply pressing one button. The control board is built to be inherently intelligent and learns the open and closing limits automatically, so there is no need for time-consuming guesstimates and manual adjustments. Many other openers have to through a learning procedure that may require repeated testing and adjusting of the limits and other features.
    • Easy Access Adjustable Magnetic Limit Switches - Magnetic limit switches are more reliable than many other designs because dirt and other debris do not normally interfere with proper functioning. The ones of the Estate Swing Medium Duty Carriage Door Opener Kit are easy to adjust and access since they are on the bottom of the exterior arm. Installation and adjustment are uncomplicated - simply slide to the desired location and tighten the screw. Once the brackets are bolted into place, the customer can also adjust the open and close stopping points.
    • Adjustable Run Time Backup - This feature is a preventative measure against damage to the carriage door opener. Like other features of this opener, this is a learned procedure. Simply input the desired run time manually. Determine the desired run time through the control board - it has a counter on it that indicates how many seconds it takes to go from open to close. This backup run time is designed to prevent damage to the opener or other property should the limit switches be altered in some way.
    • Large Opening Arch Capabilities - This model has the ability to open carriage doors up to 110 degrees, well beyond most other openers. This is especially useful for users with driveways that curve in front of the garage, allowing easy entry and exit.
    • Highest Level of Safety - In addition to meeting or exceeding many safety standards, this kit's safety devices function on a normally closed circuit. This means that if a safety device does not activate for any reason, the opener will not operate, keeping loved ones and assets safe. Most other openers function on a normally open circuit, which means the consumer does not know the safety device is not working properly until it is too late. Another great feature is the lack of pinch points; the articulating arm has been specifically designed to extend and retract without trapping fingers or anything else in the arm.
    • Quick, Safe and Secure Manual Release - Every unit comes with a manual release key. In the rare case power has failed and the back up battery is not charged, the manual release key can be used to safely open the carriage door without damaging the opener arm or disconnecting anything from the carriage door.
    • Adjustable Performance Features - Consumers can adjust the performance of the Carriage Door Opener to fit their tastes, lifestyle, and needs. Pause Times, Opening/Closing Delays, Static Force and much more can all be adjusted.
    • 24 Volt Output Terminals - Convenient for accessories requiring power, i.e. locks, sensors, etc.
    • Quick Plug Radio Receiver - The easiest receiver to use on the market. There are no wires to run, simply set your dip switch combination and plug it into the board.
    The Estate Swing Medium Duty Carriage Door Opener Kit is a fully weatherproof system that consists of a non-reversing electro-mechanical articulating operator, powered by a 24V motor, combined with a control board to move the arm and trickle charge the backup battery. The non-reversing system guarantees the carriage door will automatically lock when the motor is not operating. For added security, we do recommend an external automatic lock. For added safety, CarriageDoorOpeners.com and FAAC both recommend having the complete safety package installed. The Estate Swing Medium Duty Carriage Door Opener Kit can be used in conjunction with keypads, magnetic and solenoid locks, safety sensors, intercoms, and much more.

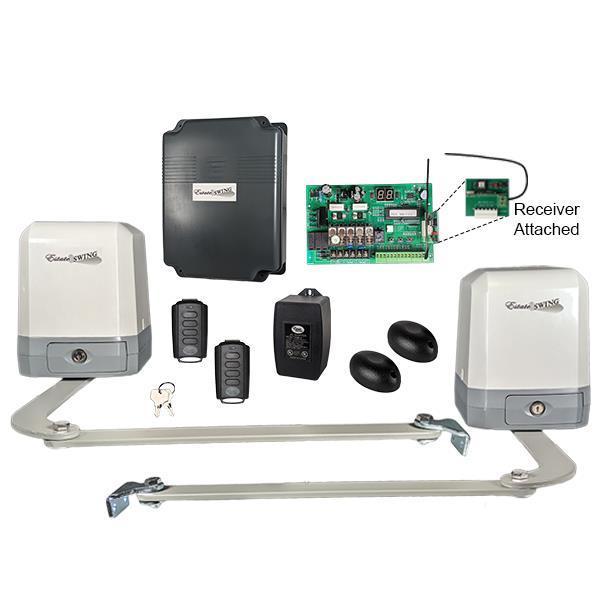

       Included with the Carriage Door Opener Top of Page
    • 24V Motor Operator arms
    • Transformer
    • Control Board
    • Manual Release Key
    • Mounting Brackets
    • Receiver
    • Transmitter
    • Detailed Installation Instructions

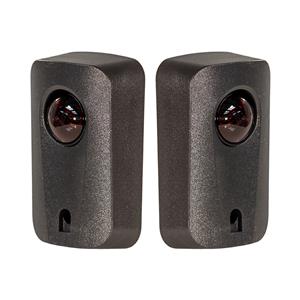

    • Pair of Safety Infrared Sensors!
    • Limited 5 year mechanical warranty
    Included Parts
       Tools & Supplies for Installation Top of Page

    The following tools and supplies are suggested in the manufacturer's manual for optimal installation. They are not provided by CarriageDoorOpeners, however, most tools are available at local hardware stores for purchase or rental.

    • Power Drill
    • Crescent Wrench
    • 5/16" Drill Bit
    • Drill bit appropriate to the anchoring hardware used
    • Flat Head Mini Screwdriver
    • Phillips Head Screwdriver
    • Tape Measure
    • Level
    • Wire Strippers
    • C-Clamps
    • Carpenters Clamp

    Depending on the type of door, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this carriage door opener model for further details.

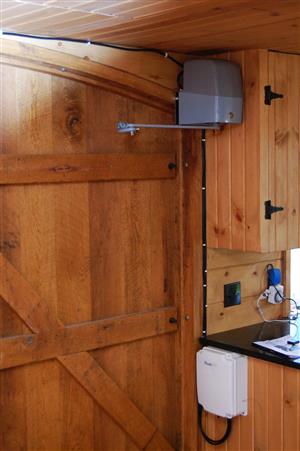

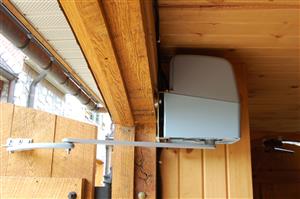

       Customer Installations Top of Page

    Click Images to View Larger
    Interior Closed
    Close-Up
    Interior Closed
    Close-Up
    Exterior Open
    Interior Open
    Control Box
    Exterior Open
    Interior Open
    Control Box

    Write a testimonial for this product or send a customer installed picture.
    Please send them to: Sales@CarriageDoorOpeners.com


       Product Media Top of Page


    Manual: EstateSwingMediumCarriage
